Solventless mask washers are designed and built to provide clean, dry paint masks for your painting operation, reduce the cost of mask washing, and provide an environmentally safe water-based method of automatically removing coating materials from mask tooling with high temperature cleaning solution. The barrier coating is applied to a clean mask prior to painting. This polymer based biodegradable film keeps paint overspray from adhering to the mask. When the tooling is ready to be cleaned, the mask washer immerses the tooling in a heated high pressure spray. This impingement denatures the paint for filtration and reapplies a new film of barrier coating.

Types of Masking Techniques - See illustrations and descriptions of basic kinds of masking techniques.

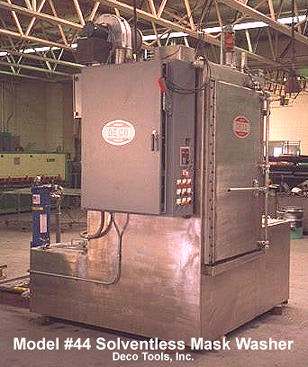

Model #44 Solventless Mask Washer
32KB Image

Model #44 Solventless Mask Washer

  • One operation cleans and dries multiple sets of three masks in approximately 3 minutes.
  • Non-toxic, bio-degradable, EPA compliant barrier coating. No VOC emissions.
  • Two-stage filtration to remove paint residue.
  • 100 psi spray solution impingement.
  • Electric or gas solution heaters.

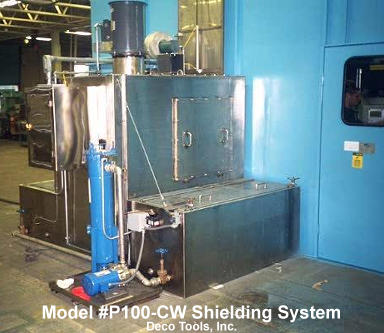

Model #P100-CW Shielding System
30KB Image

Model #P100-CW Shielding System

  • Application of EMI/RFI shielding to multiple cavity phone sets.
  • Maintained constant flow recirculating spray booth generating 11,500 CFM and exhausting 900 CFM. Five stage filtration.
  • Automatic solventless mask washer attachment with three position indexing mask reel.
  • Automatic mask changer.
  • Electric finishing robot.
  • Constant moving pallet transfer conveyor.
  • Automatic pick and place pallet transfer.
  • Dual zone vertical convection oven.
Top of Page


32KB Image

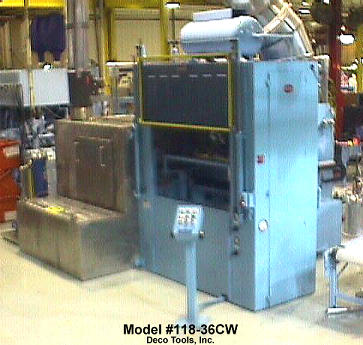

Model #118-CW Overhead Horizontal Reciprocating Paint Machine with Solventless Mask Washer Attachment

  • Application of automotive argent to lens housings.
  • Production sprayed parts are clamped in a fixture.
  • Automatic mask changer.
  • Automatic solventless mask washer attachment with three position indexing mask reel.
  • Automatic pick and place part transfer.
  • Exhaust air plenum chamber.
  • Programmable paint stroke with variable speed reciprocating drive, carriage guides, and automatic gun tilt.

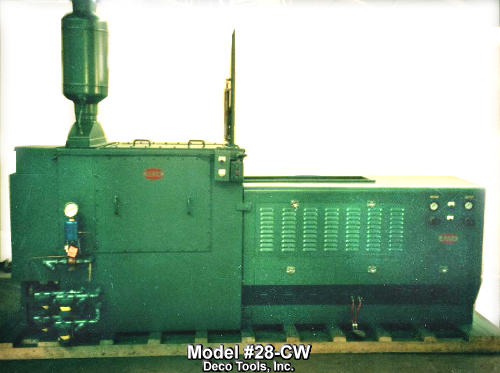

Model #28-CW
29KB Image

Model #28-CW Upspray Horizontal Reciprocating Paint Machine with Solventless Mask Washer Attachment

  • Designed for application of single/multiple colors simultaneously.
  • Production sprayed parts are placed and held in tooling by an operator.
  • Manual mask changer.
  • Automatic solventless mask washer attachment with three position indexing mask reel.
  • Exhaust air plenum chamber.
  • Programmable paint stroke with variable speed reciprocating drive, carriage guides, and automatic gun tilt.

Top of Page

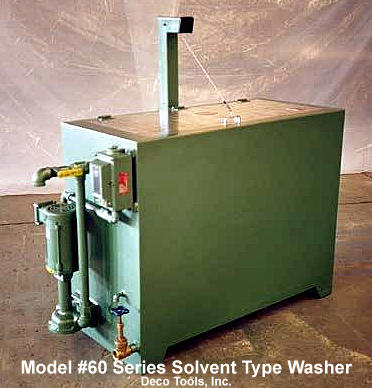

Model #60 Series Solvent Type Washer
31KB Image

Model #60 Series Solvent Type Washer

  • Cleans multiple sets of masks with a solvent of customer's choice.
  • Pump out valving installed as standard.
  • Optional counter balanced lids.
  • Optional exhaust hood.

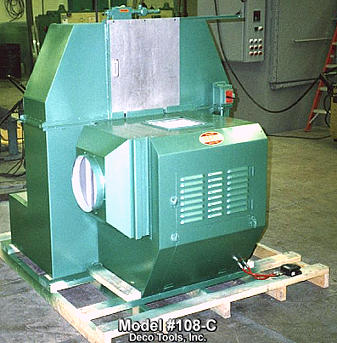

Model #108-C
32KB Image

Model #108-C Revolving Gun Paint Machine with Solvent Mask Washer

  • Designed for painting circular parts.
  • Application of base and top coats to lens housings.
  • Production sprayed parts are placed and held in tooling by an operator.
  • Exhaust air plenum chamber.
  • Three passage rotary spindle unit.
  • Spray guns revolve continuously.
  • Machine incorporates three masks into mask reel for solvent wash cycle.
