Semi-automatic spray machines are custom designed and built for our customers needs based on parts and production rates. We are always innovating new ideas to decrease material handling of parts and meet the high demands of increasing production rates. Spray machines are built modular for use in an existing spray booth, with an exhaust plenum chamber, or with dedicated mask washer attachments for high production. Spray machines are designed to reciprocate spray guns, revolve spray guns, revolve parts, shuttle tooling to a robot, or paint constant moving parts. Spray machines provide uniform coating thickness, increased paint to part transfer efficiency, reduced paint consumption, reduced VOC emissions, reduced spray booth maintenance, consistent production rate, and increased production rates.

Types of Spray Machines

1). Upspray Reciprocating Machines
2). Overhead Reciprocating Machines
3). Robotic Index Tables

4). Wiping Machines
5). Chain-on-Edge
6). Revolving Gun Spray Machines
7). Finishing Systems



1). Upspray Reciprocating Machines


Model #28M
32KB Image

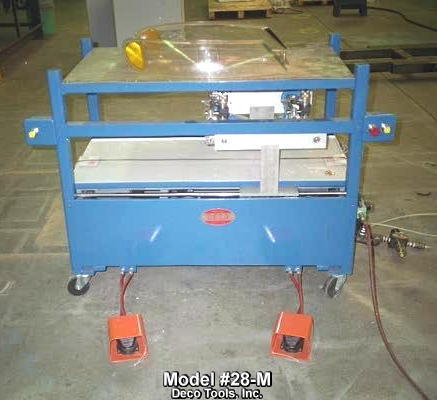

Model #28-M Upspray Reciprocating Paint Machine








Model #28
26KB Image

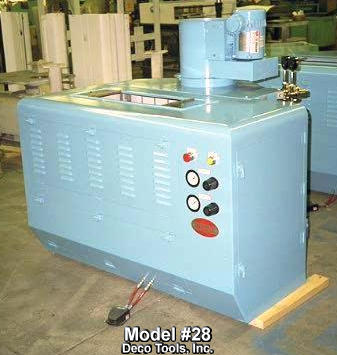

Model #28 Upspray Horizontal Reciprocating Paint Machine







Model #28-CW
29KB Image

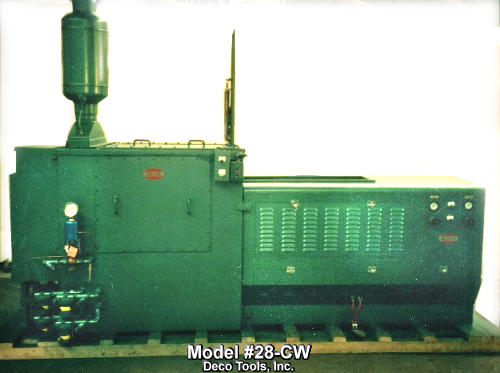

Model #28-CW Upspray Horizontal Reciprocating Paint Machine with Solventless Mask Washer Attachment

  • Designed for application of single/multiple colors simultaneously.
  • Production sprayed parts are placed and held in tooling by an operator.
  • Manual mask changer.
  • Automatic solventless mask washer attachment with three position indexing mask reel.
  • Exhaust air plenum chamber.
  • Programmable paint stroke with variable speed reciprocating drive, carriage guides, and automatic gun tilt.

Top of Page

2). Overhead Reciprocating Spray Machines


Model #118-M
32KB Image

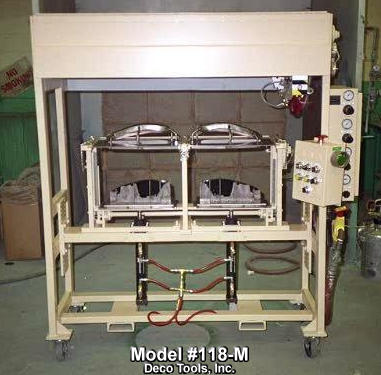

Model #118-M

Overhead modular horizontal reciprocating paint machine.


Model #118
25KB Image

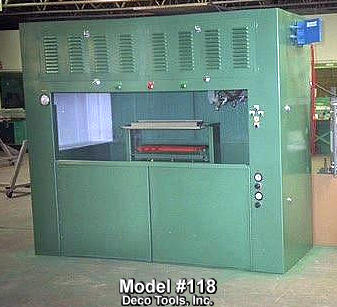

Model #118

Overhead horizontal reciprocating paint machine.


Model #118-CW
32KB Image

Model #118-CW Overhead Horizontal Reciprocating Paint Machine with Solventless Mask Washer Attachment

  • Application of automotive argent to lens housings.
  • Production sprayed parts are clamped in a fixture.
  • Automatic mask changer.
  • Automatic solventless mask washer attachment with three position indexing mask reel.
  • Automatic pick and place part transfer.
  • Exhaust air plenum chamber.
  • Programmable paint stroke with variable speed reciprocating drive, carriage guides, and automatic gun tilt.

Top of Page

3). Robotic Index Tables


Model #79
31KB Image

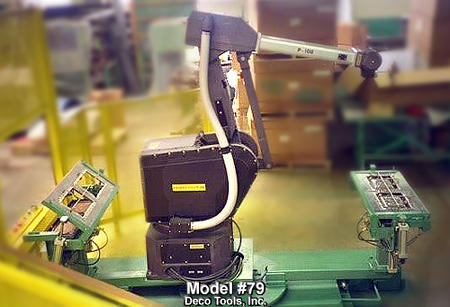

Model #79

Index table paint machine.


Model #79-I
33KB Image

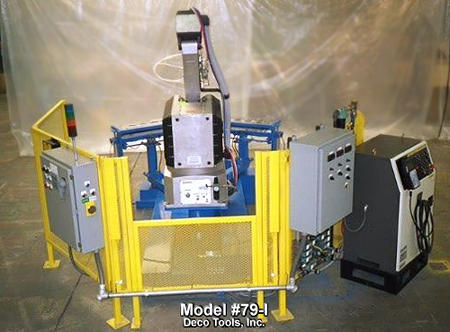

Model #79-I

Independent index table paint machine.


Model #38-I
29KB Image

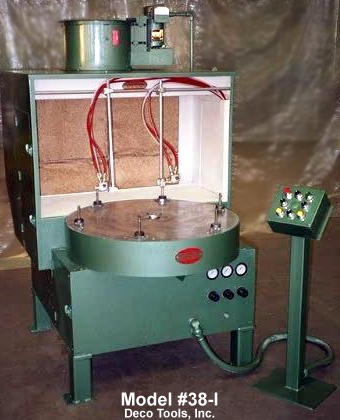

Model #38-I

Index table paint machine.

Top of Page

4). Wiping Machines

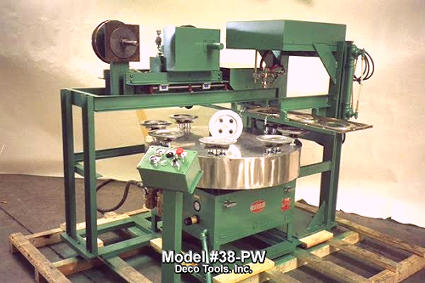

Model #38-PW
31KB Image

Model #38-PW

Index table paint and wipe machine.

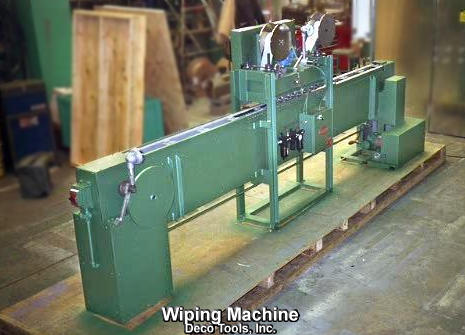

Wiping Machine
34KB Image

Wiping Machine



Top of Page

5). Chain-on-Edge


Chain-on-Edge
36KB Image

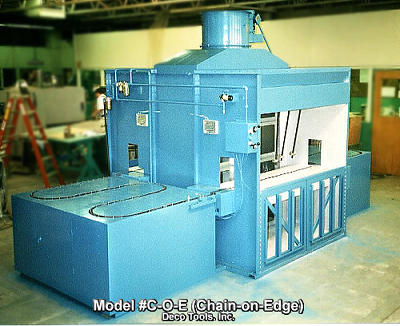

Model #C-O-E (Chain-on-Edge)



Top of Page

6). Revolving Gun Spray Machines



Model #108

Revolving gun paint machine.


Model #108-C
32KB Image

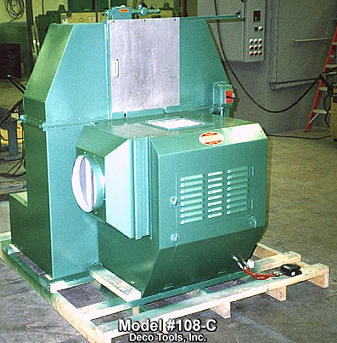

Model #108-C Revolving Gun Paint Machine with Solvent Mask Washer

  • Designed for painting circular parts.
  • Application of base and top coats to lens housings.
  • Production sprayed parts are placed and held in tooling by an operator.
  • Exhaust air plenum chamber.
  • Three passage rotary spindle unit.
  • Spray guns revolve continuously.
  • Machine incorporates three masks into mask reel for solvent wash cycle.

Rotary Spray Guns
30K Image

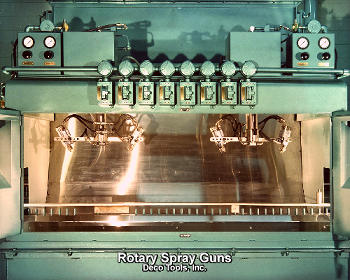

Rotary Spray Guns



Top of Page

7). Finishing Systems


Paint Finishing System

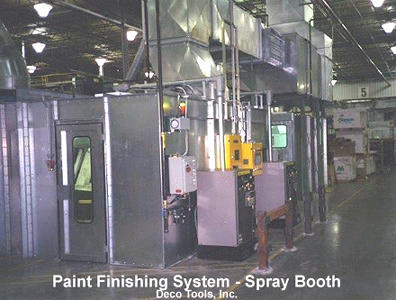

Spray Booth
Spray Booth
28K Image

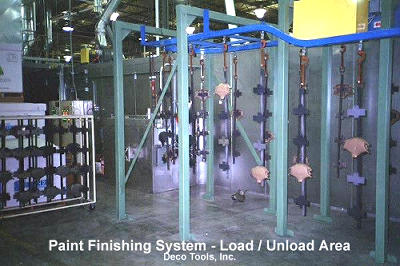

Load/Unload Area
Load/Unload Area
33K Image

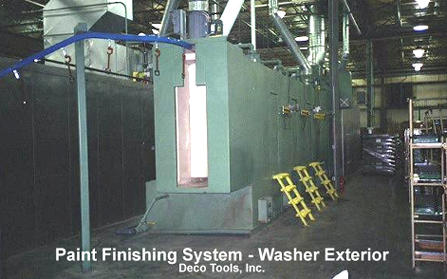

Washer Exterior
Washer Exterior
29K Image

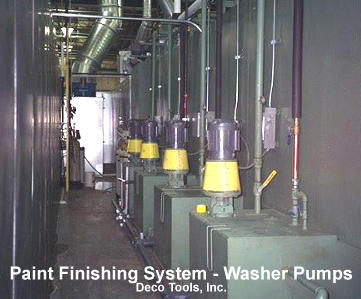

Washer Pumps
Washer Pumps
24K Image

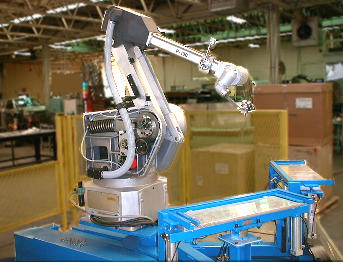

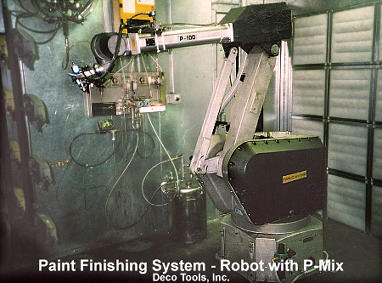

Robot with P-Mix
Robot with P-Mix
29K Image


Top of Page

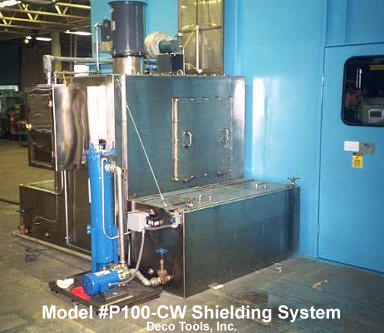

Model #P100-CW Shielding System

Washer Exterior
Washer Exterior
30K Image
Exterior
System Exterior
33K Image

Top of Page
