Fixtures

More	Masks	Fixtures	Mask Washers	Spray Machines	Flow Coating Equipment	Additional Equipment
Products:

Fixtured tooling allows repeatable part to mask registration. Automatic clamping of the part to the mask allows for faster paint cycles and paint line definition. Rest pads are equipped with shot pins that locate into bushings on the mask tooling for proper alignment. Fixtures have rack and pinion design with cam follower guides when clamping part to mask. Bench style, trunion, vertical, and hinge fixtures are designed per customer part specifications.

Types of Masking Techniques - See illustrations and descriptions of basic kinds of masking techniques.

Types of Fixture Designs

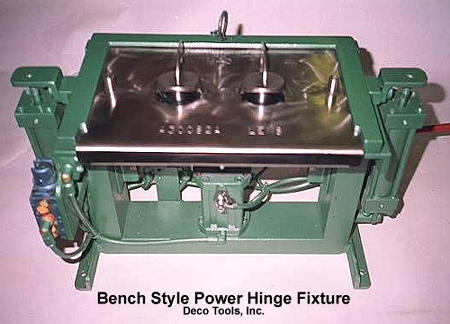

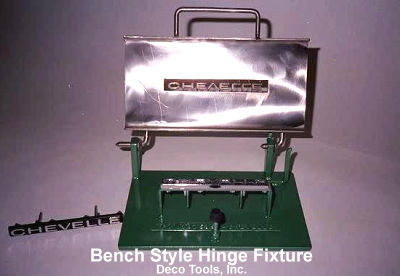

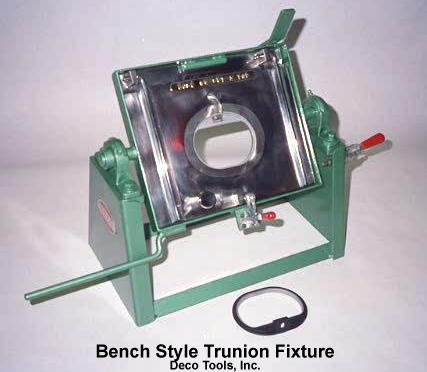

Bench Style Hinge Fixture 19K Image	Bench Style Power Hinge Fixture 30K Image	Bench Style Trunion Fixture 25K Image

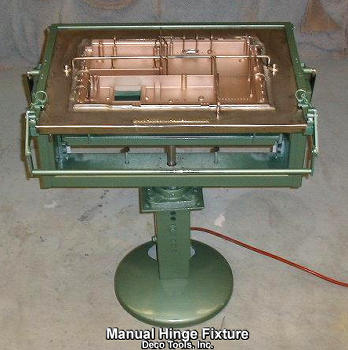

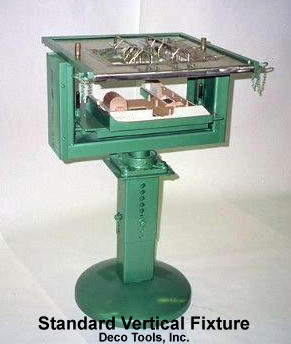

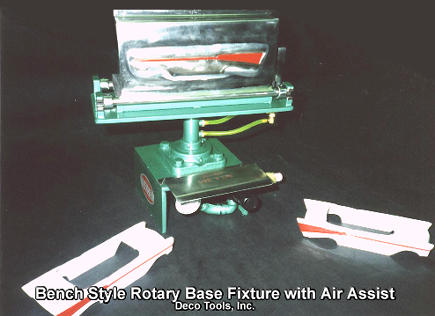

Bench Style Rotary Base Fixture with Air Assist 24K Image	Manual Hinge Fixture 26K Image	Standard Vertical Fixture 17K Image

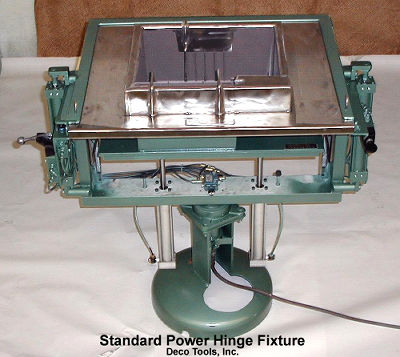

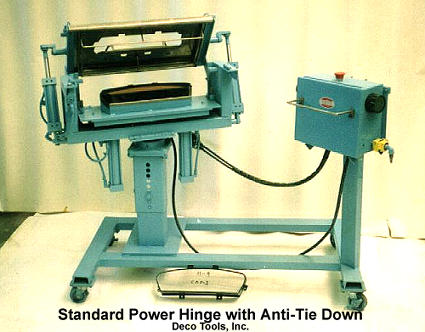

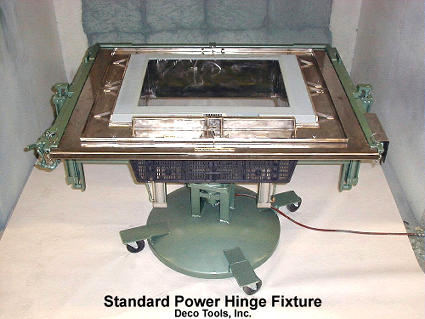

Standard Power Hinge Fixture 35K Image	Standard Power Hinge Fixture 28K Image	Standard Power Hinge with Anti-Tie Down 33K Image

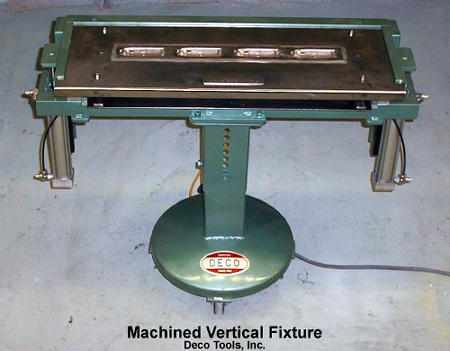

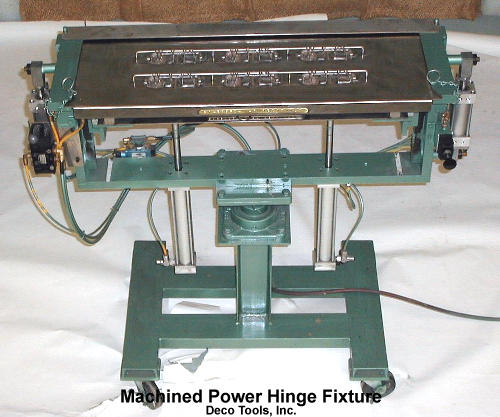

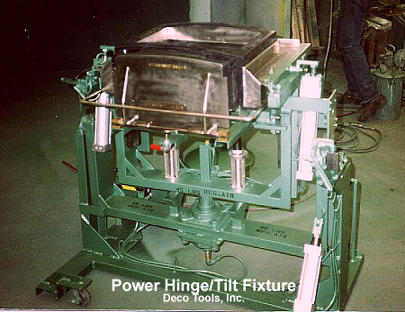

Machined Vertical Fixture 28K Image	Machined Power Hinge Fixture 44K Image	Power Hinge/Tilt Fixture 35K Image

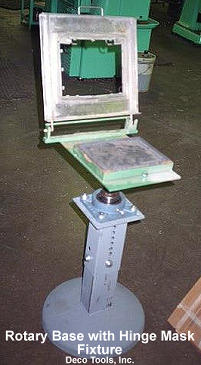

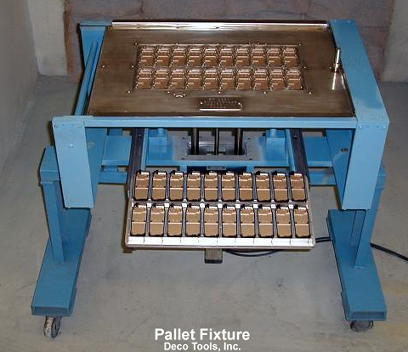

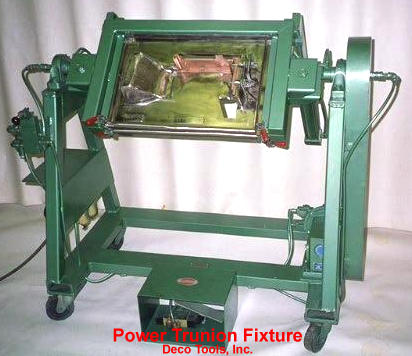

Pallet Fixture 30K Image	Power Trunion Fixture 33K Image	Rotary Base with Hinge Mask 19K Image

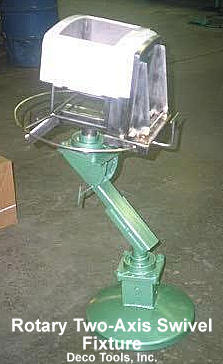

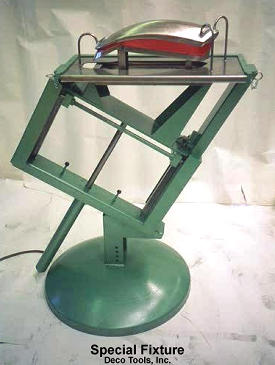

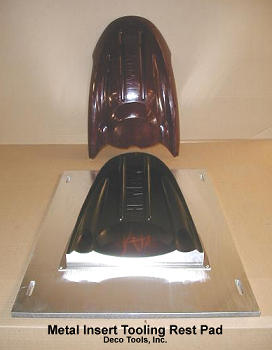

Rotary Two-Axis Swivel Fixture 18K Image	Special Fixture 20K Image	Metal Insert Tooling Rest Pad 14K Image
